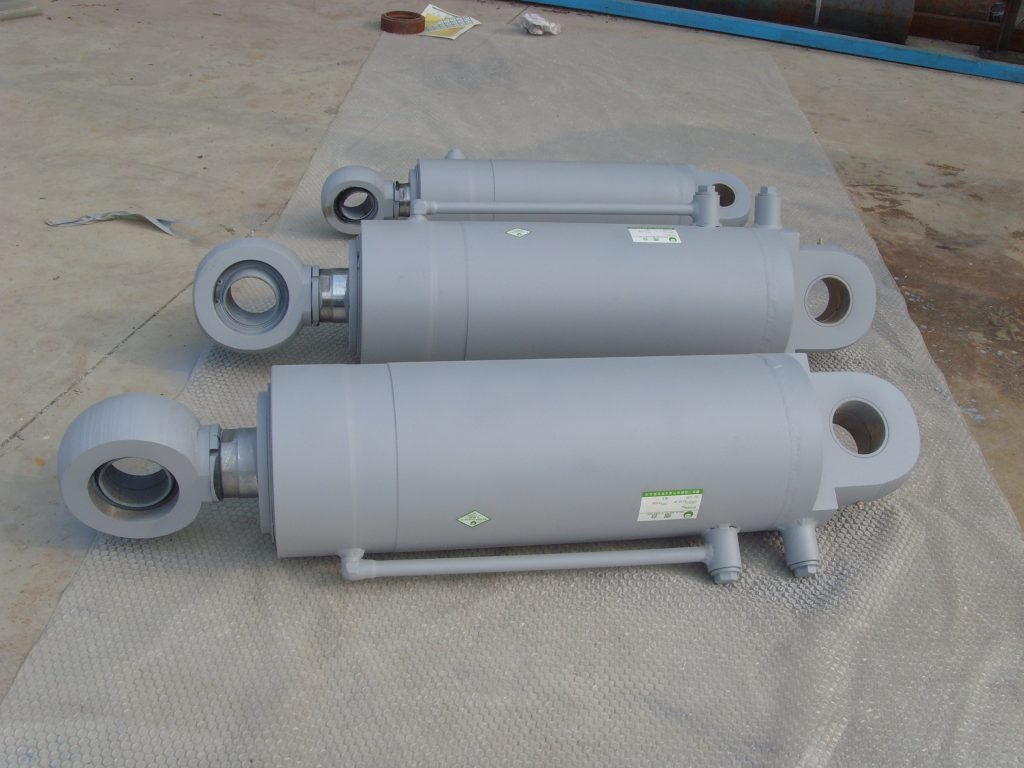

CDH2 CGH2 hydraulic cylinder 50-500mm best quality China factory
Bore size 50 63 80 100 125 140 150 160 180 200 250 320 400 500mm, CDH2 CGH2 hydraulic cylinder double acting, DIN 24 333 standard, ISO6022 , CETOP RP 73H, VW 39 D 921; Widely used in Industry area. working pressure 250bar, Static pressure test pressure 375bar.
- 1. CDH2 CGH2 hydraulic cylinder follow DIN 24 333 standard, ISO6022 , CETOP RP 73H, VW 39 D 921.
- 2. CDH2 CGH2 hydraulic cylinder , bore size 50-500mm, piston rod size 32-360mm; max troke length 6 meters.
- 3. working temperature: -20-80℃, different type seals could match it.
- 4. working pressure 250bar, Static pressure test pressure 375bar.
